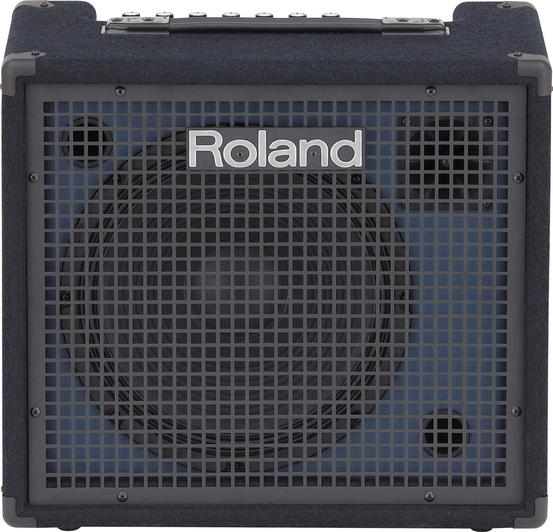

Roland KC-200 4-Channel Mixing Keyboard Amplifier

Roland KC-200 4-Channel Mixing Keyboard Amplifier

Loading product options
  • ompact and affordable keyboard amplifier with 100 watts of power
  • Redesigned power amp and power supply sections provide increased stability and improved bass reproduction
  • Custom two-way speaker system with newly developed 12-inch woofer and tweeter
  • Onboard mixing with four 1/4-inch line input channels, dedicated auxiliary input with 1/8-inch and RCA jacks, and master EQ
  • Channel 4 provides dedicated monitor functionality for click and guide tracks
  • XLR mic input, 1/4-inch line output, headphones output, and sub output
  • Metal jacks for increased durability

Rated Power Output100 WNominal Input Level (1 kHz)CH1 (XLR type, MIC/LINE): -50-- -20 dBu
CH2 (LINE): -20 dBu
CH3 (LINE): -20 dBu
CH4 (MONITOR): -20 dBu
AUX IN (L, R, STEREO): -10 dBuNominal Output Level (1 kHz)LINE OUT: +4 dBu
SUB OUT: +4 dBuSpeakers30 cm (12 inches) Woofer x 1
Tweeter x 1ControlsPOWER switch

[CH1]
MIC/LINE knob

[CH2]
LINE knob

[CH3]
LINE knob

[CH4]
MONITOR knob

[EQUALIZER]
LOW knob
HIGH knob

MASTER knobIndicatorPowerConnectorsCH1 jack: XLR type
CH1 (MIC/LINE) jack: 1/4-inch phone type
CH2 (LINE) jack: 1/4-inch phone type
CH3 (LINE) jack: 1/4-inch phone type
CH4 (MONITOR) jack: 1/4-inch phone type
AUX IN (L, R) jacks: RCA phono type
AUX IN (STEREO) jacks: Stereo miniature phone type
LINE OUT jack: 1/4-inch phone type
SUB OUT jack: 1/4-inch phone type
PHONES jack: 1/4-inch TRS phone type (mono signal output)Power Consumption70 WAccessoryOwner's ManualOption (sold separately)Speaker stand: ST-A95SIZE AND WEIGHTWidth480 mm
18-15/16 inchesDepth295 mm
11-5/8 inchesHeight435 mm
17-1/8 inchesWeight15 kg
33 lbs 2 oz

For over two decades, keyboard players everywhere have relied on Roland’s KC amps for their powerful high-fidelity sound, onboard mixing features, versatile connectivity, and lasting durability. The latest generation carries on the time-honoured KC benchmark of quality while offering new enhancements tuned for the needs of today’s working musicians. With a KC amp by your side, you’re in complete control of your stage rig, so you’ll always sound great and play your best. And that’s worth it every time.

The KC-200 offers full-range audio reproduction in a compact amp with 100 watts of power. The cabinet features Roland’s patented twin bass-reflex design, providing extended low-frequency response without distortion. Paired with the newly redesigned power section and updated 12-inch woofer, the KC-200 delivers even better bass performance for amplifying 88-note stage pianos, organs, and synthesizers, plus rhythm machines and other electronic instruments.

The KC-200’s four 1/4-inch line input channels support keyboards, drum machines, and various electronic instruments. There’s also an auxiliary channel with 1/8-inch and RCA inputs for connecting smartphones, music players, or other devices. Channel 1 includes an XLR input too, letting you plug in a vocal mic for even more versatility. Channel 4 is dedicated to monitoring through the KC-200’s onboard speakers and headphones jack; this allows you to monitor click or guide tracks while performing without sending the sound to a PA via the amp’s line out jack.

With its easy-access connectivity, the KC-200 integrates into any playing environment. A 1/4-inch line output enables you to interface with PA systems, stage monitors, and recording devices. There’s also a Sub Out jack for connecting to a powered subwoofer, with level conveniently tied to the amp’s master volume for one-touch control. Plugging into the Phones jack mutes the onboard speakers and Sub Out, perfect for private practice sessions and checking sounds on stage with headphones.
